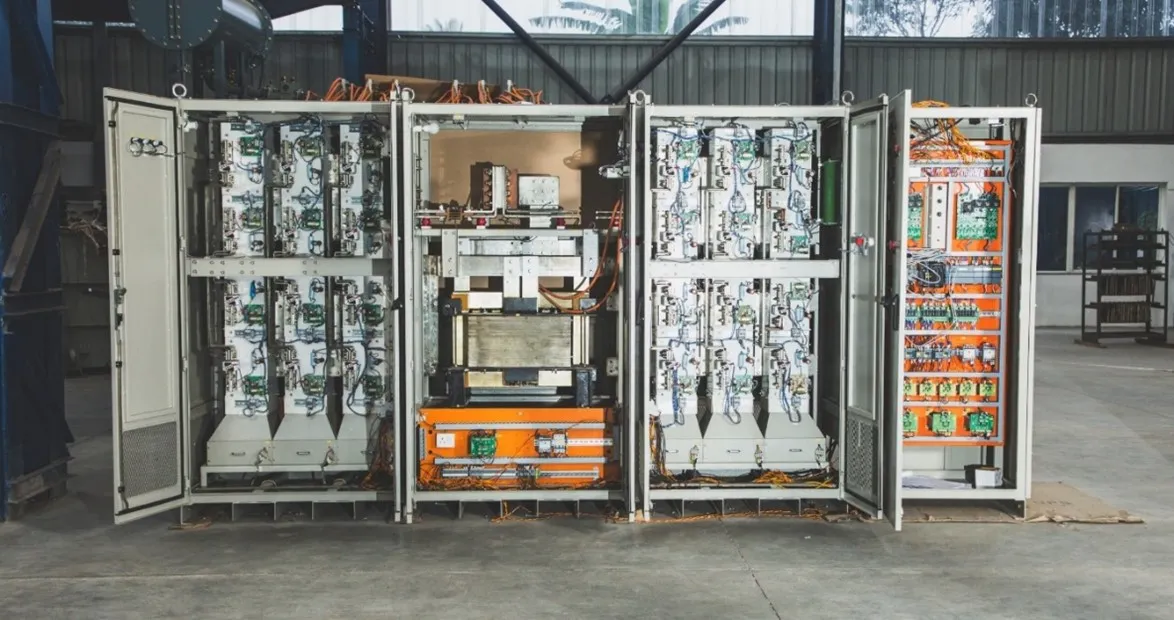

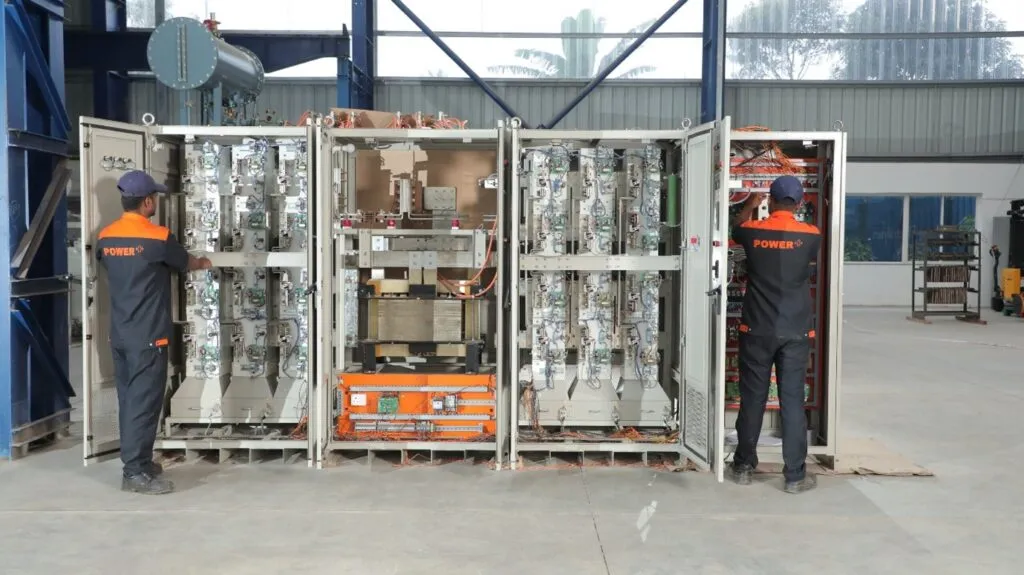

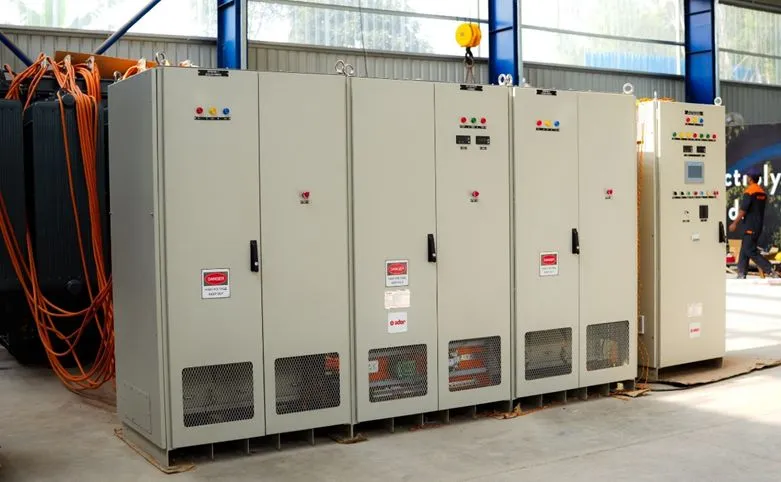

The thyristor rectifier is an established and reliable technology that has been used for decades in AC-DC conversion applications with great success. Ador Powetron provides 6 pulse, 12 pulse, 24 pulse and 48 pulse thyristor converters across the world for various application and of various ratings.
When linked to the grid, this topology frequently necessitates a more sophisticated transformer design, harmonic filters, and power factor correction (PFC) equipment. Ador offers complete power conversion solution including input transformers and rectifier cabinets, with and without PFC and Harmonic filters based on the electrolyser requirements.
Specification | Thyristor Rectifier |
Input Voltage Range | 0.4 – 40 kV (to transformer) |
Max Output Voltage / Current | 1500 V / 60,000 A |
Maximum Power | 100 MW |
Power Factor | > 0.8 (>0.9 with passive filter) |
ThDi | < 10 % (<5% with passive filter) |
Output ripple | < 5 % |
Efficiency | > 97 % @ rated output with nominal voltage |
Input Voltage | 11 KV / 22 KV / 33 KV / Customized |
Frequency | 50 / 60 Hz |
Maximum MVA | 25 MVA (Higher MVA on request) |
DC Voltage Range | Up to 1,500 V |
DC Current Range | Up to 60,000 A |
Tap changer | OCTC (Off Circuit Tap Changer) |
Pulses | 6 / 12/ 18/ 24 / 48 / Multi Pulse |
Installation | Transformer: Outdoor / Indoor / E – House Rectifier : Indoor / E – House / Container |
Cooling | Transformer: ONAN/ ONAF/ OFWF Rectifier : Natural air cooling / Forced air cooling / DM Water cooled |
System efficiency | >97% |
Transformer fluid | Mineral / Silicon / Customized |
Harmonic and Power Factor correction unit | Can be offered optionally. Harmonic option suitable to meet IEEE519 requirements |
PLC | Siemens / Alen Bradley / customized |
Controls | Mainly Constant current with voltage limit / Constant Voltage with current limit |
Control accuracy | 1% |
Communication | Modbus / Profibus / customized protocols |
Interconnection between Transformer and Rectifier | Busduct with busbars (Copper / Aluminium) |
Transformer accessories | Conservator Gas and Oil Relay Silicagel Breather Filter valve, Drain Valve OTI / WTI MOG Radiators (welded / detachable as per rating) Rollers (as required) |
Rectifier protections | Snubber protection for Thyristors High Speed semiconductor fuse for Thyristor protection Solid state current limit Over temperature protection for Thyristors Phase failure detection & protection Over current trip protection Auto/Manual mode of control is available. Local/Remote control is available Soft start |
Standards | IEC 61378 IEC 60146 EN 50178 IEC 60076 IEC 61439 |
Compliances | Low Voltage Directive 2014/35/EU |
Electromagnetic Compatibility Directive 2014/30/EU | |
