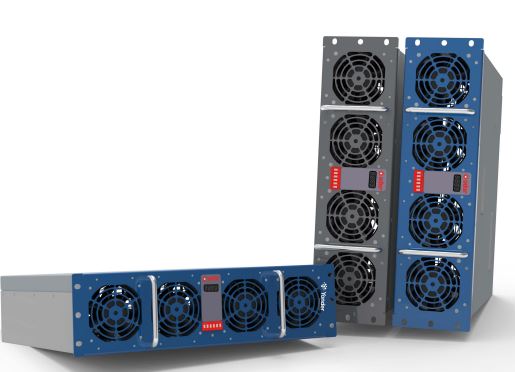

30 kW AC/DC Power Module for EV Fast Chargers Compact. Modular. ARAI-Certified. Made in India.
Yonder’s 30 kW power module is a compact, rack-mount AC/DC block engineered specifically for DC fast chargers and also ARAI Certified. It delivers high power density and excellent efficiency in a field-tested, Made-in-India design – so charger OEMs and CPOs can scale from 30 kW to multi-hundred-kilowatt systems without redesigning their architecture.
1. Designed Around Charger OEM Needs
- Dimensions (H × W × D): 110 mm × 385 mm × 400 mm
- Weight: ≤ 23 kg
- Front-access fans and connections for quick service
- Single building block that can be paralleled for 60 / 90 / 120 / 150 / 240 kW and higher
- Supports both public chargers and depot/fleet applications
2. Performance That Stays Consistent in Real Conditions
- High conversion efficiency (peak >96%) to reduce heat and energy loss
- Stable operation on fluctuating Indian grids
- Power factor and harmonics optimized for utility and DISCOM norms
- Sized and cooled for true 24/7 operation in harsh environments
3. Smart Control & Communication
- Digital interface (e.g. CAN) for seamless link with charger controller
- Real-time feedback for voltage, current, temperature and fault status
- Ready for remote monitoring, diagnostics and integration into existing software platforms
4. Protection & Safety Built In
- Input under/over-voltage protection
- Output over-current / short-circuit protection
- Over-temperature monitoring and safe shutdown
- Designed to comply with relevant EV charging and safety standards, including ARAI certification for the complete module
5. Reliability Backed by Ador Powertron
- Developed and manufactured in Pune with in-house power electronics expertise
- Supported by an established service network and application engineering team
- Proven design philosophy drawn from traction, industrial and energy-transition projects
6. Where This Module Fits Best
- Highway and urban DC fast chargers
- Bus and commercial fleet depots
- OEM test and demo chargers
- Captive charging at auto plants, logistics hubs and industrial campuses
